汽车齿轮加工用电镀装置设计优化

打开文本图片集

中图分类号：U463.212 文献标识码：A 文章编号：1003-8639（2026）01-0131-03

Design Optimization of Electroplating Equipment for Automotive Gear Processing

Cao Kejing （Qiqihar InstituteofEngineering，Qiqihar161OO5，China）

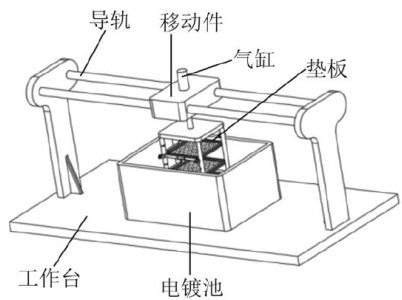

【Abstract】In response to the problem of uneven coating in the batch electroplating process of automotive gears， this study designed an electroplating device with a dynamic layered structure.This deviceachieves spatial isolation of gears through modular partition frames，using slide rail guidance positioning and plug-in locking mechanisms to accuratelyadjustlayer spacing，integrating elasticsmoothing mechansms tocontrol the single-layer distribution of gears. Construction practice has shown thatthe optimized electroplating device efectively improves theuniformityof gear coating，increases electroplating efficiency，and achieves a product qualification rate of 98.3% .Thisarticle elaborates on thecore structural design，key parameteroptimization，and key pointsofconstruction process control ofthedevice， providing technical reference for the inteligent upgrade of surface treatment equipment for automotive parts.

【Key words】 automotive gears;electroplating equipment;structural optimization;layered electroplating; construction technology

0 引言

汽车齿轮作为传动系统的核心部件，其表面品质直接影响整车的使用寿命。（剩余4394字）
