无料钟炉顶上、下密封阀阀板单独打压分析及解决

打开文本图片集

ANALYSISAND SOLUTIONOFSEPARATELYPRESSING THEUPPERANDLOWERSEALINGVALVEPLATESON THETOPOFTHEBELLLESSFURNACE

Fang Yuliang （Qinhuangdao Qinye Heavy Industry Co.， Ltd. Qinhuangdao O66318， China）

Abstract：Theupperandlowersealingvalves on thetopofthebellessfurnace arekeyequipment inthe belless furnace top system，which playarole inthe pressure reliefof the material tank and the high-pressure sealing of the furnace top.Thevalve plateis thecore componentthatdetermines thesealingandis alsoavulnerable component. Major steel companies atach great importance to thequalityof spare parts for valve plates.Atfirst， when the upper and lower sealing valves were supplied as a whole，the entire valve had alreadyundergone pressure testing inthe factory and was qualified before being packaged and shipped.Theseparate supplyof valve plates must also meet the pressure test standards of the entire valve，whichis amandatoryrequirementof major steel enterprises andan innovative pursuit of various manufacturers.This article selects typical valve plate spare parts supplied byour company，analyzes and envisions their individual compression， and summarizes the solutions ultimately found.

Key words： no bell furnace top；upper and lower sealing valves；valve plates；separate pressure

1上、下密封阀结构

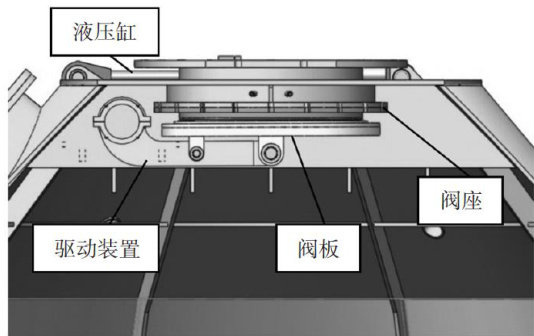

如图1（上密封阀）及图2（下密封阀）所示，上、下密封阀的作用相同，结构相似，都是通过驱动装置配合润滑系统驱使阀板动作使之与阀座压紧来达到密封作用。（剩余2610字）
