高速磁浮列车轻量化复材车体典型结构设计及验证

打开文本图片集

中图分类号：U270.2 文献标志码：B doi：10.20214/j.cnki.zhgdjt.2025.06.13.01

Design and Verification of Typical Structure of High Speed Maglev Lightweight Composite Carbody

YANG Xiaorong，WANG Xiaojun，GU Yulin，DU Jian，ZHAO Hongwei （1.State key Laboratory of High-speed Maglew Transportation Technology，

CRRC Qingdao Sifang Locomotive & Rolling Stock Co.，Ltd.，Qingdao 266111，China; 2.National Enginneering Technology Research Center for High-speed EMV，

CRRC Qingdao Sifang Locomotive &. Rolling Stock Co.，Ltd.，Qingdao 266111，China;

3.New Materials Division，CRRC Qingdao Sifang Locomotive &. Rolling Stock Co.，Ltd.，Qingdao 26611，China）

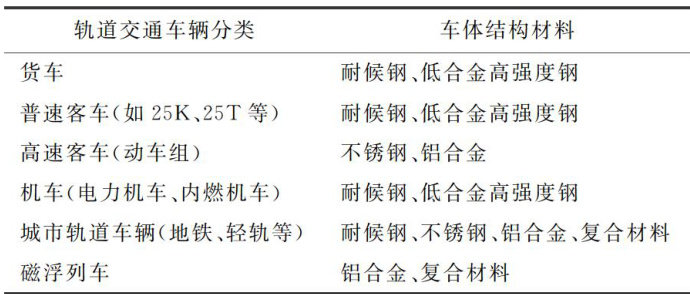

Abstract：This paper briefly introduces theapplication status of lightweight materials for rail vehicles，and designs two side wallstructures made of aluminum alloy and carbon fiber composite materials，respectively. In addition，the side wallstructuresof two different materialsare simulated and compared，and the side wall test pieces of carbon fiber composite materials are tested and verified.The results demonstrate thatthe carbon fiber composite side wallcan meet the requirements of a high airtight load with a weight reduction of 21.4% . Due to the anisotropyof carbon fiber composite and the test method，there is a deviation between the simulation results and the test results of carbon fiber composite.A large number of tests are required to modify the simulation model.

Key words：high-speedmaglev train；lightweight carbody；carbon fiber composite material；strength analysis

随着我国经济的飞速发展，人们对中长距离高速客运的需求呈现指数级增长，对高速快捷、安全舒适、资源节约、环境友好的现代交通需求越发强烈，高速磁浮列车刚好可以填补飞机与高铁之间的速度空白[]。（剩余5900字）
