基于FPGA的DDS快速跳频参考源设计

打开文本图片集

中图分类号：TP772 文献标识码：A文章编号：2096-4706（2025）12-0032-05

Design of the DDS Fast Frequency Hopping Reference Source Based on FPGA

WANG Meng1²， LIU Qin1²， ZHAO Lei1.2 （1.Ceyear TechnologiesCo.，Ltd.，Qingdao，China; 2.Electronic Measuring Instrument Technology Innovation Centerof Shandong Province， Qingdao ，China）

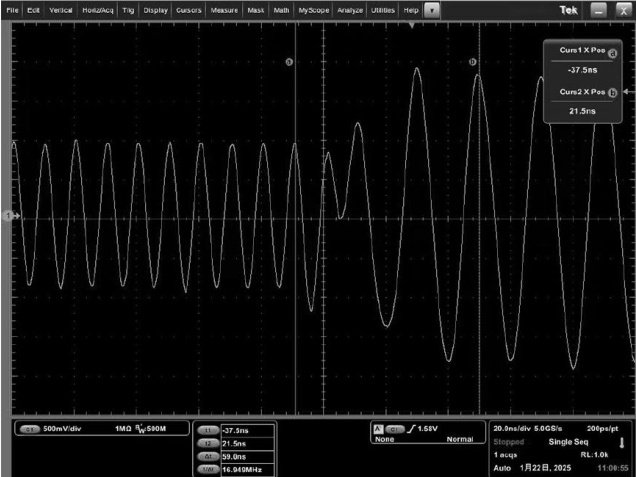

Abstract： This paper proposes a design scheme of DDS fast frequency hopping reference source based on FPGA. A reference source is designed withahigh-stabilityOven-Controled Crystal Oscilltor（OCXO），asmallintegratedPLLchip LMX2572，andahigh-performance DDSchipAD9956as thecore，andtheDDS reference source isused todriveahighfrequencybroadbandfrequencysynthesizerbasedonaPLL.TheprincipleoftheDDSreferencesourceisintroduced，andthe generation of a reference signal with a frequency range of 50～100MHz ，a frequency resolution less than 0.005Hz， a frequency switching time shorter than 6O ns，and a single-sideband phase noise less than zisachieved.TheDDS referencesource designed bythisshemenotonlyhasthe advantages ofhighfrequencyresolution，low phase noise，smallsize， andlowpowerconsumption，butalsocanperfofastfrequencyhoppinginthre modesincudingsingletone，no-dwelllinear sweep，and linear sweep.

Keywords： PLL; FPGA; fast frequency hopping;DDS

0 引言

参考源作为基于PLL的高频宽带频综的关键部件，广泛应用于矢量信号发生器、移动通信装置、雷达、矢量网络分析仪、半导体测试机等电子系统H，传统基于PLL的高频宽带频综[多采用固定频率参考源，不仅频率分辨率较低，相噪也较差。（剩余5282字）
