新型轨道交通安全道岔转向装置研究

打开文本图片集

关键词：轨道交通；轨道梁道岔；固定支撑板；活动支撑板；导向滑轮中图分类号： U260.13+8 文献标志码：B doi：10.20214/j.cnki.zhgdjt.2025.06.018

Research on a New Type of Railway Transit Safety Turnout System

WEN Congxi

（CRRC Tangshan Locomotive&Rolling Stock Co.，Ltd.，Tangshan O630oo，China）

Abstract： As a novel transportation mode，micro-rail transit systems serve as a beneficial complement and enhancement to existing public transportation. This paper analyzes the switching principles of micro-rail transit systems at turnouts and designs a safety turnout system for the risks of misrouting and vehicle derailment at turnouts. At the turnout of the guideway beam，movable support plates and fixed support plates are installed on the internal upper plane of the beam.The position of the movable support plates determines the branching path of the micro-rail vehicle after passng through the turnout，with the movable plates being controlled by the dispatching system. The micro-rail vehicle's running gear is equipped with two guide pulleys on its upper part，while additional guide pulleys are installed on both sides of its lower-midde section. Through the coordinated interaction between the guideway beam support plates，the top guide pulleys，and the side guide puleys，the micro-rail vehicle achieves safe and stable passage through the guideway beam turnout. This paper presents two design schemes：single movable support plate and dual movable support plate configurations.Both solutions effectively prevent micro-rail vehicles from misrouting and derailing，while simultaneously reducing vibration and resistance of vehicles passing through turnouts.

Key words：rail transit；guideway beam turnout； fixed support plate；movable support plate；guide pulley

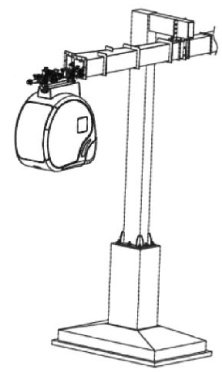

微轨交通系统是一种新型交通方式，它依托立柱与高架轨道梁搭建线路，采用悬挂式车辆并实现自动驾驶，同时具备线路自动调度指挥功能，是“门到门”的智能交通系统[1。（剩余4592字）
