圆孔阵列全介质透明超表面的研究

打开文本图片集

关键词：全介质超表面；圆孔阵列；法诺共振；透明；多极子分析

中图分类号： O441.4

文献标识码：A

DOI：10.14106/j.cnki.1001-2028.2025.1433

引用格式：杨晓苑，吕晓龙，郭云胜. 圆孔阵列全介质透明超表面的研究 [J]. 电子元件与材料，2025，44（2）： 147-151.

Reference format： YANG Xiaoyuan，LYU Xiaolong，GUO Yunsheng. All-dielectric transparent metasurface of circular hole array [J]. Electronic Components and Materials，2025，44（2）： 147-151.

All-dielectric transparent metasurface of circular hole array

YANG Xiaoyuan 1， LYU Xiaolong 1， GUO Yunsheng 2

（1.College of Science， Inner Mongolia University of Science and Technology， Baotou 014010， Inner Mongolia

Autonomous Region， China; 2. Inner Mongolia Key Laboratory of Intelligent Communication and Sensing and Signal

Processing， School of Electronic Information Engineering， Inner Mongolia University， Hohhot 010021， China）

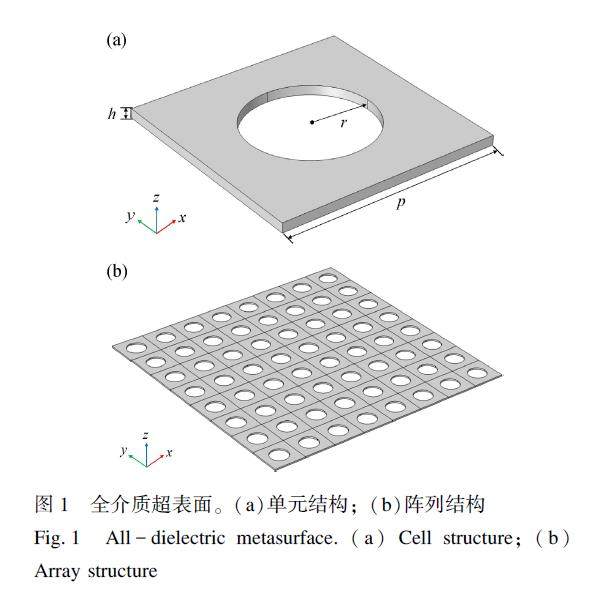

Abstract： In this paper， a circular hole array all-dielectric metasurface was designed， which could suppress multipole scattering due to Fano resonance and achieve complete transmission of the incident electromagnetic waves with certain frequency. The experimental results of the circular hole array on the polytetrafluoroethylene ceramic composite substrate show that when the period， circular hole radius and thickness of the metasurface cell structure are 30 mm， 8.5 mm and 1.3 mm， respectively， the transmittance of the incident electromagnetic wave at 8.48 GHz is 93.89%， which is basically consistent with the simulation results. The small shift and decrease of the transmission peak are due to the processing deviation of the experimental sample and the absorption of the sample material to the electromagnetic wave. This all-dielectric transparent metasurface has simple structure， easy fabrication， reliable performance and good application prospects.

Keywords： all-dielectric metasurface; circular hole array; Fano resonance; transparent; multipole analysis

电磁超表面是亚波长谐振单元的二维空间排列形式，它们在无线通信 [1]、宽带吸收 [2]、频率选择 [3]、传感 [4-5]、天线 [6]和生物医学 [7-8]等领域有着广泛的应用。（剩余5707字）
