螺杆泵液压制动防反转装置热力耦合分析

打开文本图片集

中图分类号：TE933.3 文献标志码：A doi：10.3969/j.issn.1001-3482.2025.05.005

Thermodynamic Coupling Analysis of Hydraulic Brake Anti-Reversal Device for Screw Pump

GENG Dai'，XU Zhi'， YANG Naitong²， ZHANG Qiang1， CHEN Xiaojun²， WANG Xingyan² （1.School of Mechanical Scienceand Engineering，Northeast Petroleum University，Daqing 163318，China; 2.Beijing Petroleum Machinery Co.，Ltd.， China National Petroleum Corporation KUNLUNManufacturingCompany Limited，Beijing102200，China）

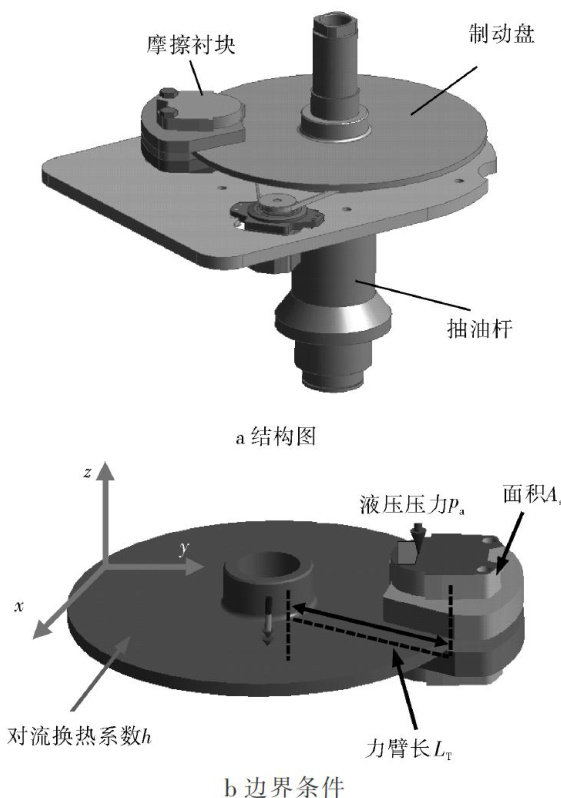

Abstract：The hydraulic brake anti-reversal device can provide effctive braking torque and avoid safety issues caused by the excessive reversal speed of the sucker rod when the screw pump is shut down.Therefore，a thermodynamic coupling finite element model of the hydraulic brake anti-reversal device for screw pump was developed，and the influencing factors and variation of the braking torque of the hydraulic brake device and the temperature rise of the brake disc were studied.The results indicate that the braking torque isonly related to hydraulic pressure，and the temperature rise is related to the number of braking cycles and hydraulic pressure.A higher hydraulic pressure means a greater braking torque and temperature rise of the anti-reversal device. Based on the finite element results，fitting formulas for braking torque，temperature rise，and hydraulic pressure are proposed，providing theoretical guidance for hydraulic brakes.

Key words： screw pump; anti -reversal; hydraulic brake; braking torque; thermodynamic coupling： temperature rise

在抽油过程中，螺杆泵驱动抽油杆使原油通过油套管之间的环形腔体举升至地面[1]。（剩余7627字）
