Ku波段多路窄带信号相位检测与校准

打开文本图片集

中图分类号：TN911.23 文献标志码：A DOI： 10.12305/j.issn.1001-506X.2026.03.03

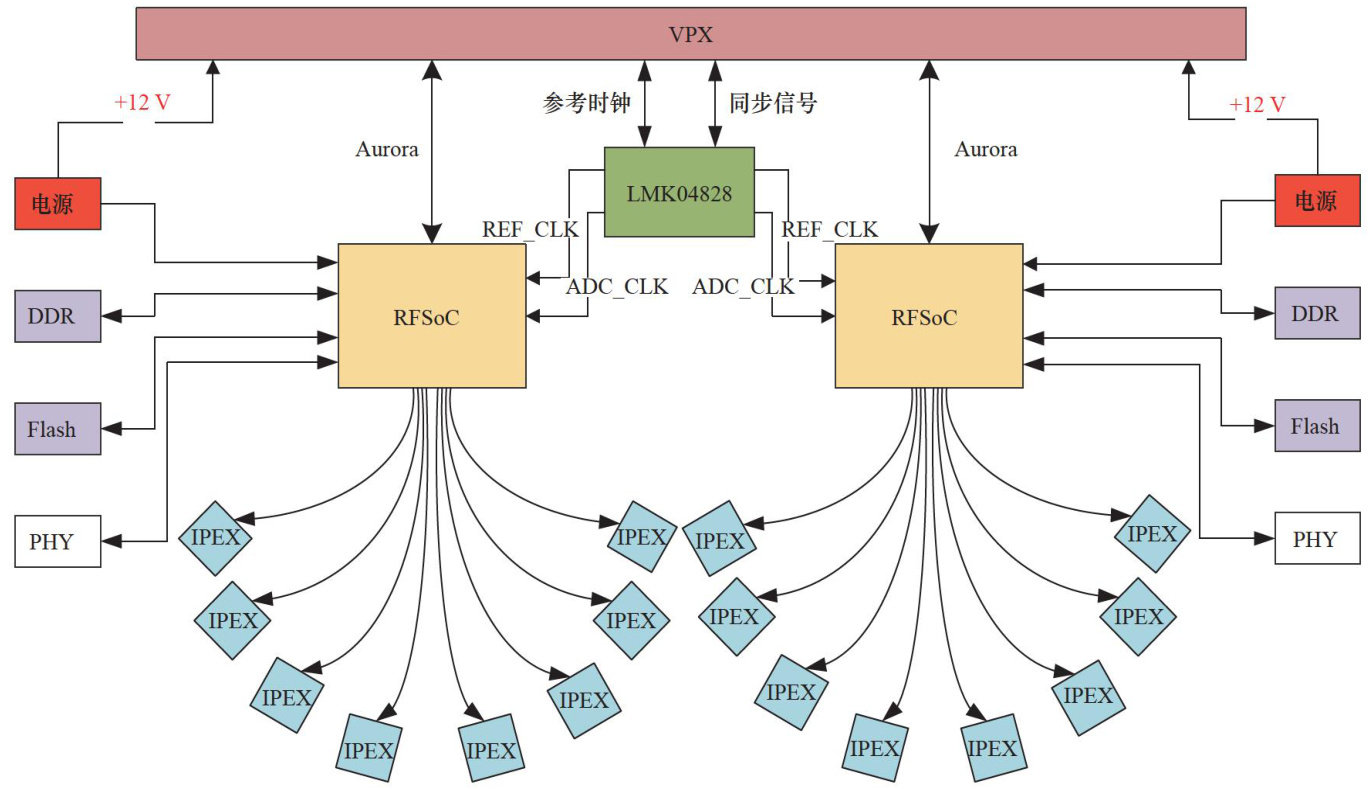

Abstract：To addressthe issue of communication quality degradation caused by phase misalignment in multi-chanel signals withincomplex electromagnetic environments，areal-timecalibration method forKu-bandultra-narrowbandsignals basedonradio frequencysystem-on-chipis proposed.Thesystemadopts aconfigurable radio frequency front-endand digital compensation colaborativearchitecture，combined withtime-frequency domain hybridcorrection algorithm，and adopts a multi-channel parallel processng hardware structure to achieve synchronous processingand phase compensationof multichannelsignals，breaking through theaccuracyand real-time limitations of taditional phasedetection methods in processing narowband signals.Theexperimental resultsshow that the system can effectively improve phase consistency in strong interference environments.After calibration，the phase error is controlled at ±0.02∘ ，which is 80% higherthan theminimum error of ±0.1∘ in the vector network analyzer calibration scheme.The signal quality after calibration mets the rquirements of tactical systems.

Keywords： radio frequency system-on-chip;Ku-band; extremely narrowband signal; phase detection; multichannel synchronization

0引言

更高的数据传输速率和通信带宽，在传输过程中具有较强的抗干扰能力[3]，能够在复杂的信道环境下保持信号的稳定性和可靠性[4]。（剩余17931字）
