电动剃须刀外壳注塑模的设计

打开文本图片集

Design of injection mold for electric razor case

REN Tianjuan

（Shaanxi Institute of Technology，Xi'an 71O3O2， Shaanxi，China）

Abstract： This paper takes the electric razor shell plastic parts as the research object， according to the moulding difficulties of the plastic parts， the mould is designed with a latent gate to ensure the surface quality of the plastic parts; in order to ensure that the plastic parts side holes， diagonal holes and snap mechanism molding were designed for the core extraction mechanism of the fixed and moving moulds;and at the same time，a fixed-pitch parting mechanism is designed to ensure that the moulds three times the parting and the smooth release of the mould，the structural design of this injection mould is reasonable，and it can provide a certain reference for the moulding of the same kind of shells and plastic parts. The structural design of the injection mould is reasonable，and it can provide certain reference for the moulding of similar plastic parts of shells.

Key words： injection mold; constant-mode core puling; lateral core pulling; triple staging

0 引言

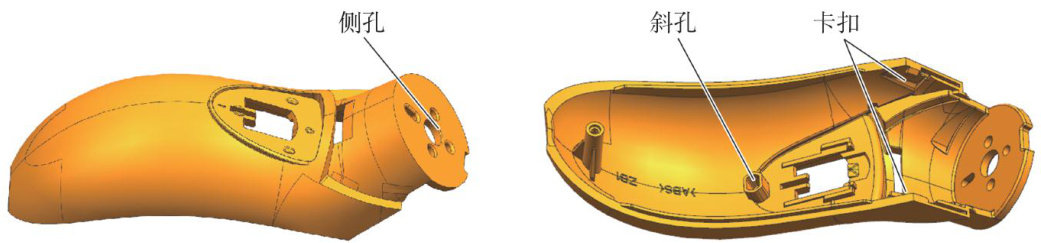

电动剃须刀外壳类产品大多是规则形状，通常都有侧孔、斜孔和卡扣机构，为保证塑件的顺利脱模，需要设计相应的弧抽芯机构。（剩余3492字）
