磁集成串联电容Buck-Cuk高降压DC-DC本质安全型变换器

打开文本图片集

DOI：10.15938/j. emc. 2025.04.014

中图分类号：TM46 文献标志码：A 文章编号：1007-449X（2025）04-0147-11

Series capacitor Buck-Cuk high step-down DC-DC converter with magnetic integration

LI Hongzhu， LI Wenrui， LI Wenjing （College of Electrical and Control Engineering，Liaoning Technical University，Huludao ，China）

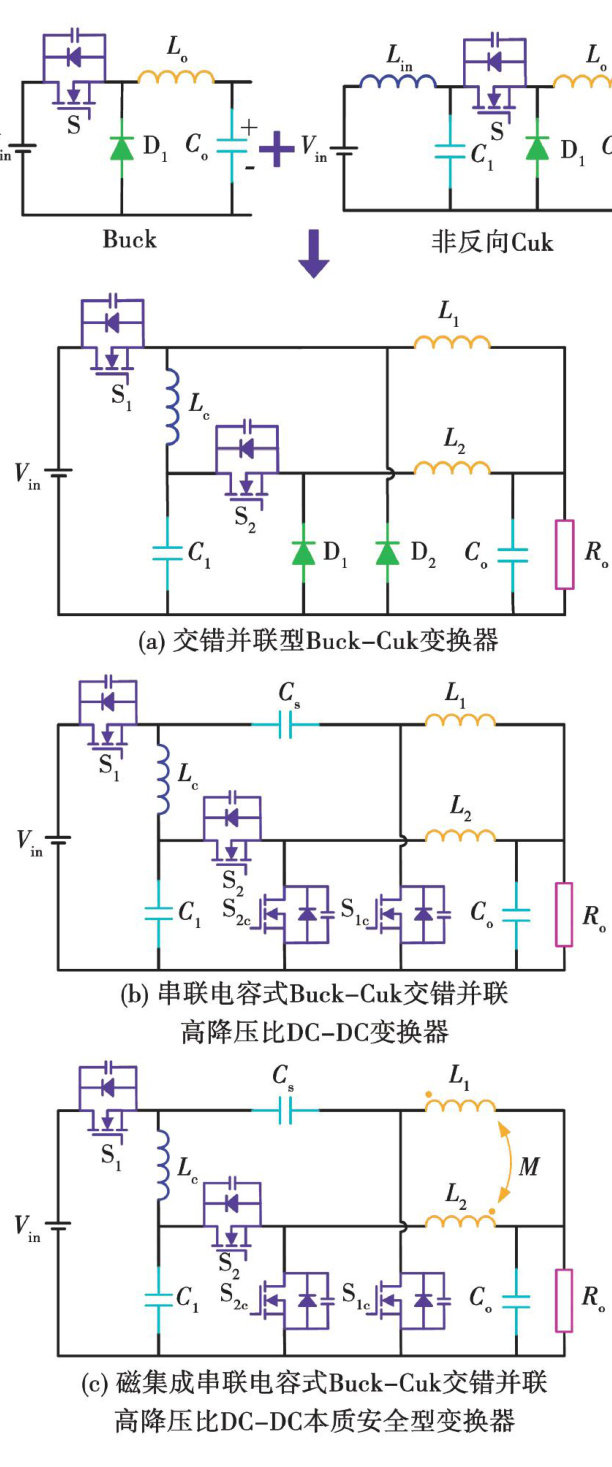

Abstract：To address the issue of insufficient step-down ratio in traditional intrinsically safe converters， a Buck and non-inverting Cuk converter were combined to form an interleaved paralll Buck-Cuk converter. By introducing a series capacitor，the voltage stress on the switching devices was reduced. To minimize the converter’s volume and weight，the two output inductors were magnetically coupled and integrated， resulting in a magnetically integrated series-capacitor Buck-Cuk high step-down DC-DC intrinsically safe converter. The equivalent inductance of the coupled inductor under different operating modes was analyzed，and the impact of coupling on phase current ripple before and after integration was derived. The constraint relationship between the coupling coefficient and current ripple suppression under diffrent duty cycles was obtained，verifying that magnetic integration enhances the converter’s intrinsic safety performance.Furthermore，the energy contributions from the power source and various components to the discharge spark during a short circuit were analyzed，demonstrating that the proposed converter significantly improves intrinsic safety compared to traditional converters. Finally，an experimental prototype was built to validate the theoretical analysis.

Keywords：Buck-Cuk converter； high step-down； interleaved；coupling coefficient； current ripple； in-trinsic safety

0引言

煤炭和石油化工等行业在生产过程中会存在大量爆炸性气体，因此应用于煤炭和石油化工等场合的电子设备必须满足防爆要求[1]。（剩余12709字）
