硅橡胶热老化对电连接器插合界面特性的影响

打开文本图片集

DOI：10.15938/j. emc. 2025.04.003

中图分类号：TM215.2 文献标志码：A 文章编号：1007-449X（2025）04-0023-12

Effect of thermal aging on interface characteristics of silicone rubber in electrical connector

LIU Peiyan， YANG Haoxiang， SONG Yanbo， YANG Xinru， FENG Yang， LI Shengtao（State KeyLaboratoryofElectrical InsulationandPower Equipment，Xi’anJiaotong University，Xi'an71O49，China）

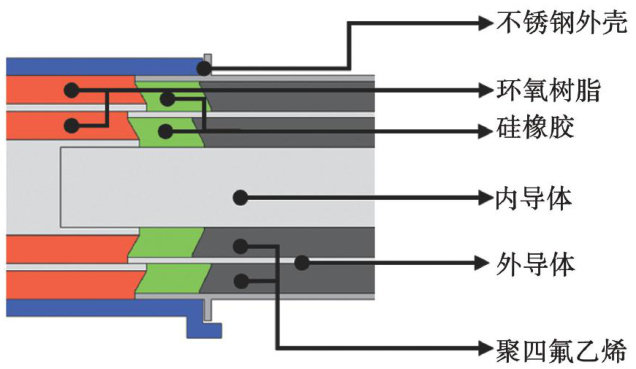

Abstract：Sufficient interfacial pressure and good insulation performance between silicone rubber and epoxy resin at electrical connector insertion are the keys to ensure its stable operation，but the aging characteristics of silicone rubber will affect the interfacial pressureand insulation performance between it and epoxy resin. In order to study the effct of thermal aging on interface characteristics of silicone rubber in electrical connector，the single cone structure model of silicone rubber and epoxy resin was established， and the distribution of interface pressre and electric field was calculated by finite element simulation. The effect of thermal aging on the distribution of interfacial pressure and electric field was analyzed based on the experimental results of silicone rubber’s cross-linking density，infrared spectrum and tensile property. The results show that under the action of thermal aging，the cross-linking reaction and hydrogen removal reaction of silicone rubber occur，and the cros-linking density increases，resulting in the increase of silicone rubber’s elastic modulus， which makes the interfacial pressure larger than 0.25MPa ，and it will cause damage to silicone rubber's structure and partial discharge，resulting in the insulation failure of the electrical connector.

Keywords：silicone rubber； thermal ageing；electrical connector； interfacial pressure; electric field dis-tribution；insulation failure

0引言

随着我国城市化进程的发展，高压交流电缆成为远距离输电的关键电力设备[1]。（剩余14997字）
