基于PID的小区塑料大棚温湿度调控系统设计与试验

打开文本图片集

中图法分类号：S24 文献标识码：A 文章编号：1000-2324（2025）04-0711-09

Design and Experiment of PID-based Temperature and Humidity Control System for Community Plastic Greenhouses

MA Shao-hui1²，MENG Ting1²， WU Zhi-xun1²，REN Wei1²， ZHU Xia³

1.CollegeofMechanicalandElectronicEngineering/TarimUniversity，Alar8433o0，China

2.ModernAgricultural EngineeringKeyLaboratoryat UniversitiesofEducationDepartmentofXinjiangUygur

AutonomousRegion，Alar ，China

3.CollegeofEconomicandanagement/TarimUniversity，Alar84330o，China

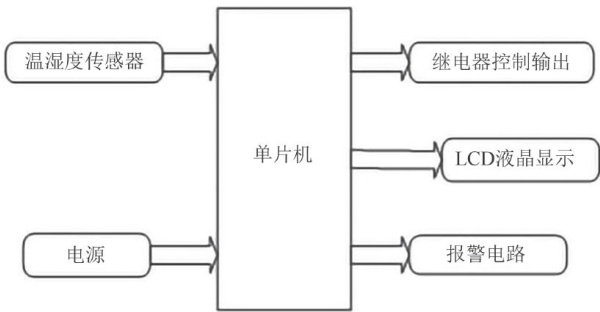

Abstract：Toaddressthe problem thatthe temperatureandhumidityadjustmentof common plasticgreenhouses needs manualrolingcotoncurtains andventilationoperation，whichistime-consumingandlabor-intensive，this studydesignsa temperature and humidity system for plastic greenhouses basedon PIDcontrol technology.The system featuresamodular designfor temperatureandhumiditymeasurement，controloutput，displayandalarm functions，whichenhancesthe conectivityandanti-interference capabilitybetweenmodules，improvingeficiencyand stability.This studyanalyzesand optimizes thecontrolalgorithm，followedbysingle-factorandcomprehensivefield tests insmall-scale greenhouses.The resultsshow that when the initial seting range of temperature and humidity is preset at 25∘-27∘C and 50%-60% ，the average error rate of the system control is 1.2% ，meeting the plant growth requirements of the test cell.This research results provides a reference scheme for the automation technology upgrade of commonplastic greenhouses.

Keywords：Facility agriculture; plastic greenhouse; temperature and humidity; PID control

引言

设施农业是现代化农业发展的最重标志[]，塑料大棚是其形式之一，因其简单，建设成本低，在广大农村被广泛建设应用。（剩余9095字）
