新型并联复式活齿传动原理及其啮合特性

打开文本图片集

关键词：并联复式活齿传动；功率分流；齿廓方程；接触分析

中图分类号：TH122

DOI：10.3969/j.issn.1004-132X.2025.11.006 开放科学（资源服务）标识码（OSID）：

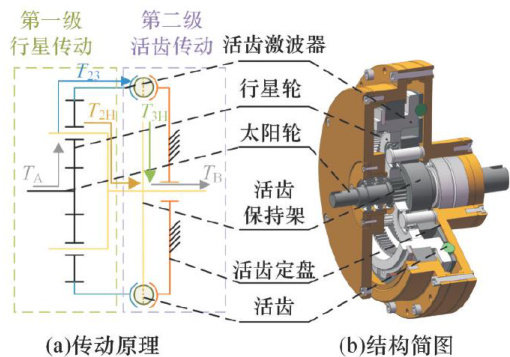

Abstract：The transmission ratio of single-stage movable tooth transmissions was relatively low， while the series-connected movable tooth transmisson structure was lack of compactness and inability to achieve power spliting transmission.Therefore，a novel paralel compound movable tooth transmission device was proposed，which comprised of a primary planetary gear transmisson and a planar steel bal movable tooth transmisson. The operating principles and structures of this device were introduced，along with the tooth number calculation method.The profile equations of the double-circular-arc tooth profiles were derived，and the analysis of the meshing characteristics was conducted. The results show that this innovative transmission device features a compact structure，enabling a high transmission ratio.By adjusting the number of teeth，the device achieves both forward and reverse output rotation，power spliting transmission，and“concave-convex”tooth contact. It exhibits high load-bearing capacity and is suitable for applications requiring large transmission ratios and high power density.

Key words： parallel compound movable tooth transmission； power splitting； tooth profile equation;contact analysis

0 引言

目前在机器人、医疗设备、航空航天等领域需要大传动比和高功率密度减速器，单级活齿传动难以满足上述要求，一些学者提出采用复式活齿传动来解决上述问题。（剩余10823字）
