PPy/PAN/镀银尼龙纱线状超级电容器的制备及其性能

打开文本图片集

关键词：柔性超级电容器；柔性电极；纳米纤维；导电镀银尼龙纱线；包芯纱；聚吡咯中图分类号：TQ340.64；TM531 文献标志码：A 文章编号：1671-024X（2025）03-0072-08

Preparation of PPy/PAN/silver-plated nylon yarn-like supercapacitorand itsperformance

SHI Lei 1，2 ，WANG Zeyu 1，2 ，HUYanli 1，2 ，LIU Hao 1，2 （204 （1.SchoolofTextileScienceandEnginering，Tiangong University，Tianjin3o387，China；2.Research CenterforFuture Textile Technology，TiangongUniversity，Tianjin 3Oo387，China）

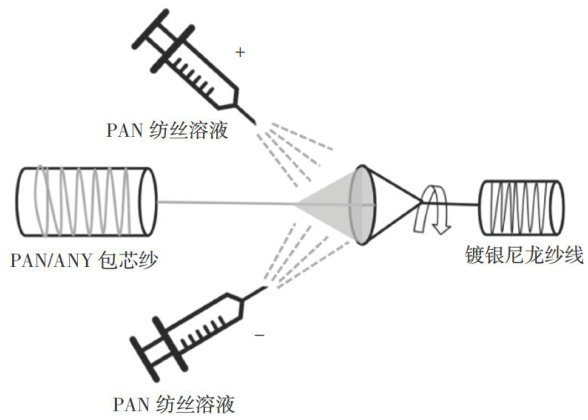

bstract：Inorder toequipsmart wearabletextileandapparel with energy storagedevice with high comfortand excellnt performance，a kind of core-spun yarn with conductive silver plated nylon yarn as core yarn and electrostatic spining nanofiber as cladding layer was prepared.Polypyrole/polyacrylonitrile/silver plated nylonyan nanofiber core-spun yarn electrode was prepared by in-situ polymerization of polypyrrle.The efect of polymerizationtime of pyroleon the structure and properties of the electrode was studied.Through observation and calculation，with the increase of polymerization time of pyrrole，the polypyrrle particles on the surface of nanofibers gradually increase and accumulate.When employing 0.3 mol/L pyrrole concentration with1.5 h polymerization time，the optimizedPPy/PAN/ANY yarn electrode achieves exceptional electrochemical performance，exhibitinganareal capacitance of 326.58 mF/cm² at1 mA/cm current density. The assembled PPy/PAN/ANY yarn-shaped supercapacitor demonstrates an areal capacitance of 274.7mF/cm2 ，energy density of 0.0382mW⋅h/cm2 ，and power densityof4.976mW/cm² at 1mA/cm2 ，while maintaining excellent flexibility. This innovative architecture exhibits promising potential for smart wearable textile applications due to its superior electrochemical characteristics and mechanical durability.

Key words：flexiblesupercapacitor;flexibleelectrode;nanofibers；condutivesilverplatednylonyarn;coreyar;polypyrrole

近年来，可穿戴电子产品在能量收集、微型机器人、电子纺织品和植入式医疗设备等各个领域的应用受到了越来越多的关注-。（剩余13487字）
