基于Micro-CT技术的猪牛羊皮革内部结构分析

打开文本图片集

中图分类号：TS57 文献标志码：A 文章编号：1673-3851（2025）09-0625-09

Reference Format： FENG Min， YANG Hailiang，CHEN Haixiang，et al. Internal structural characteristics analysis of pig，catte and goat leather based on Micro-CT[J].Journal of Zhejiang Sci-Tech University，2025，53（5）：625-633.

Internal structural characteristics analysis of pig， cattle and goat leather based on Micro-CT

FENG Min1 ，YANG Hailiang² ，CHEN Haixiang1 ，YUE Yawen1 ，QU Jinxia1 （1. National Engineering Lab for Textile Fiber Materials and Processing Technology， Zhejiang Sci-Tech University，Hangzhou 310o18， China； 2. China National Silk Museum， Hangzhou ，China）

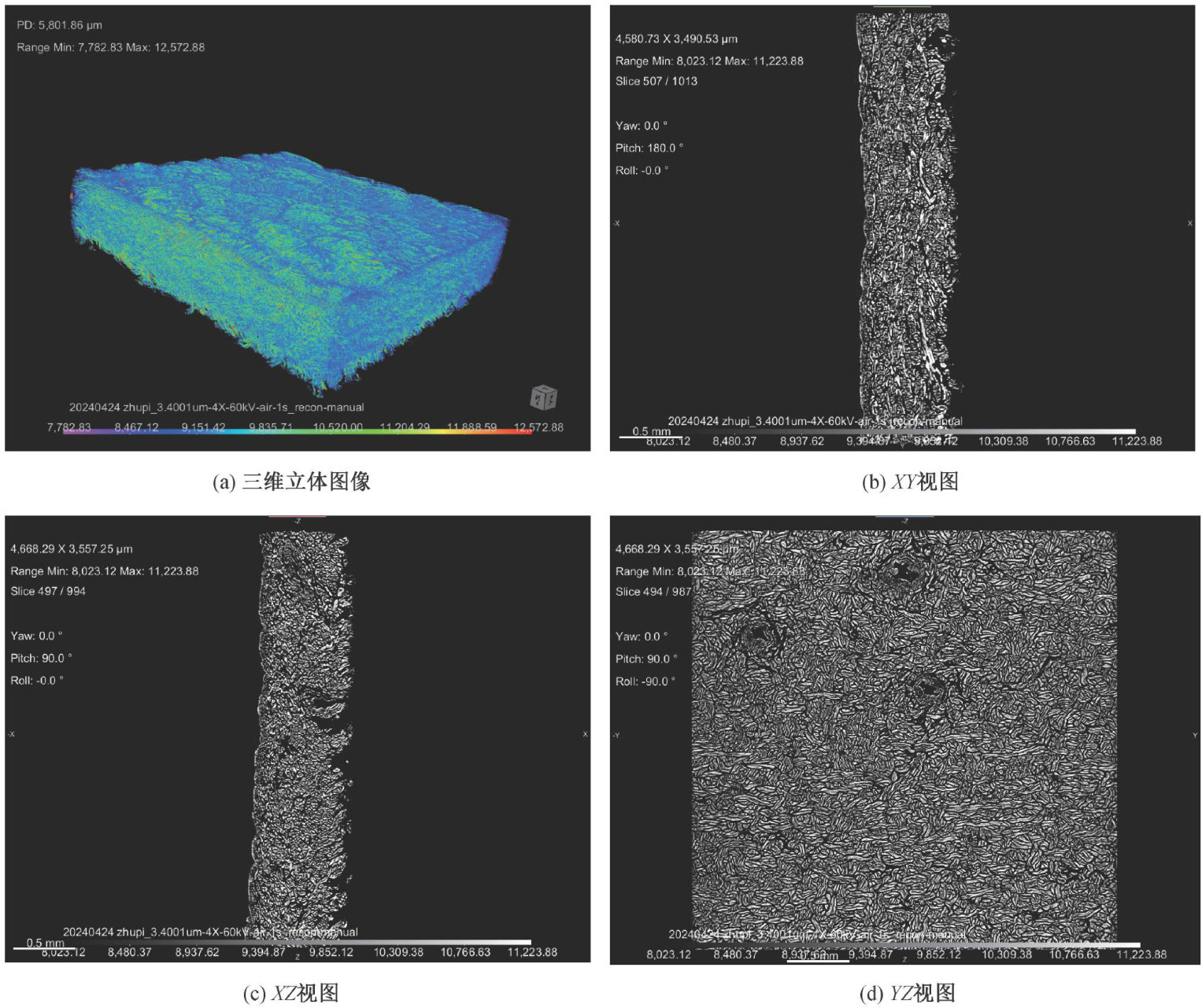

Abstract： To observe and analyze the internal structural characteristics of leather，two-dimensional images of pig，cattle，and goat leather were obtained by using an Micro-CT（Micro-computed Tomography） scanner， followed by thre-dimensional （3D） reconstruction to generate stereoscopic images. Through various image processing functions such as segmentation， enhancement， and measurement of the Dragonfly software， the study performed arbitrary virtual sectioning on leather samples to thoroughly analyze their internal structural characteristics without damaging the samples. The results showed that pig hair follcles were arranged in groups of three， forming a triangular pattern； the fiber bundles in cattle leather were coarse，with a distinct boundary between the papilary layer and the reticular fiber layer；the fiber bundles in goat leather were fine，and the hair folicle tilt angle was the smallest. Significant variations in folicle inclination angles and depths among pig，cattle，and goat leather provide fundamental data and images for the identification of genuine leather materials.

Key Words： Micro-CT; leather; three-dimensional structure；virtual slice; hair follicle

0 引言

天然皮革是动物生皮经过鞣制、染色、整理等工艺加工而成[1]，具有柔软、耐磨、高强度、高吸湿性和透水透气性等优良性能；按种类来分主要有猪皮革、牛皮革、羊皮革、马皮革、驴皮革及少量蛇皮革、鱼皮革等。（剩余7553字）
