考虑多源噪声及信号传输的雷达系统仿真模型

打开文本图片集

中图分类号：TN957.51 文献标志码：A DOI：10.12305/j.issn.1001-506X.2025.03.09

Simulation model for radar system considering multi-source noise signal transmission

WANG Qi*，WANG Ziyao，ZHENG Junfeng （ ， Uniuersity ，116o24，）

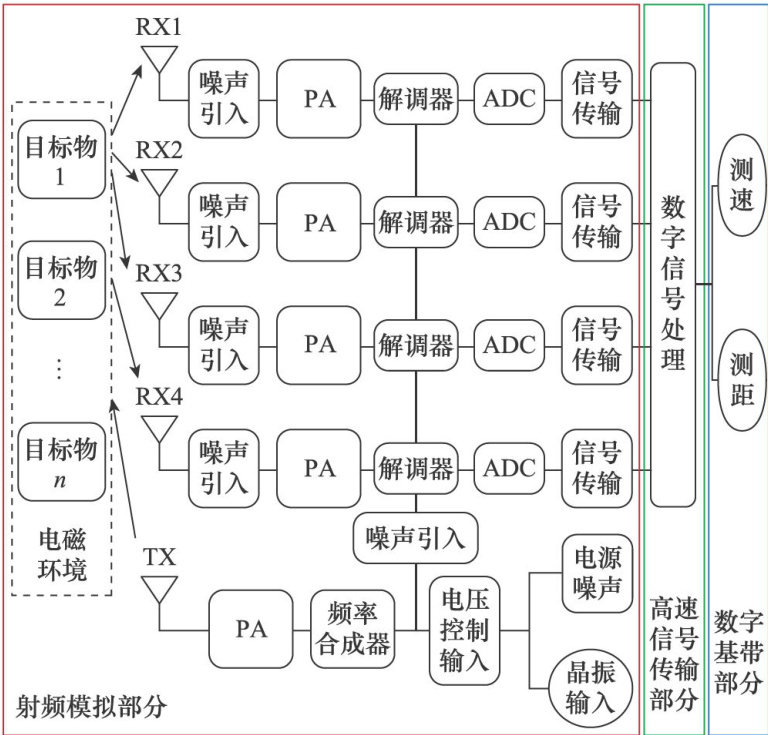

Abstract：Noise signal transmission are key factors in radar design process，this paper presents a millimeter-wave radar system simulation model considering multi-source noise signal transmission quality. The proposed model contains modules including frequency synthesizer，signal transceiver signal processing， which can simulate the generation transmisson signals to radar speed distance measurement systems. On this basis，a noise model considering power supply noise，spurious noise clutter noise is designed，which is capable simulating predicting radar mising alarmfalse alarm.In terms signal transmission，an equivalent circuit model is established，combinedwith the method field-circuit collborative toensure the simulation accuracy.Foratypical example，itis found that the clock signal has the problem“hook back". This shows that the simulation modelcan predictthe signaltransmission quality radar bydetecting indicators such as“eye diagram” signal waveform， guide the design transmission lines.

Keywords：milimeter-wave radar；system simulation modeling；multi-source noise；signal transmision quality

0 引言

频率调制连续波（frequency modulated continuous wave，FMCW）毫米波雷达是现代智能感知系统中的核心组件[1]。（剩余16754字）
