静态再结晶处理对 Co36Fe36Cr18Ni8Ti2 合金力学性能与耐腐蚀性的影响
打开文本图片集
中图分类号：TG144 文献标志码：A

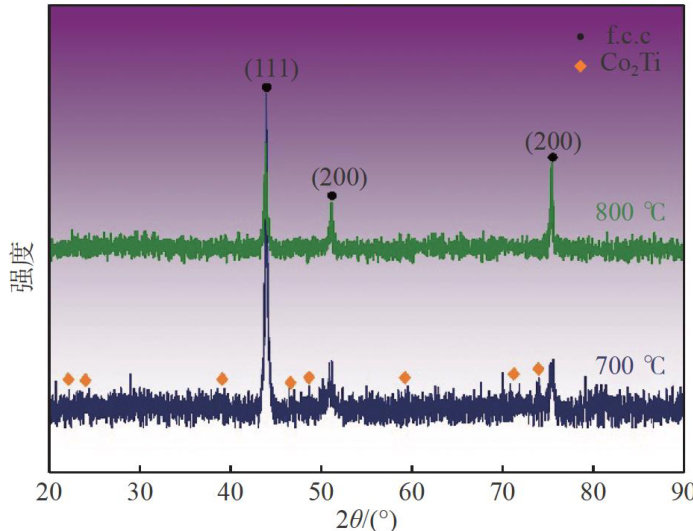

Abstract： A multi-principal elements aloy with high strength and good corrosion resistance was prepared by recrystallization annealing of cold deformed Co36Fe36Cr18Ni8Ti2 at 700∘C and 800∘C The microstructural characteristics of the alloy， such as phase distribution， recrystallization structure and grain boundary distribution，were characterized by electron backscatter diffraction （EBSD），and the mechanical properties of the alloy were measured by static tensile test. The results showed that although the elongation of the 700∘C annealed alloy is low， its tensile strength and yield strength reach 1037.8MPa and 956.1MPa ， respectively. The corrosion resistance of the alloy in the simulated body fluid was characterized by electrochemical workstation and scanning electron microscope （SEM）. The results show that the 700∘C annealed sample has good corrosion resistance，and the surface of the sample after corrosion is uniform. Combined with the mechanical properties， it is suggested that the 700∘C annealed sample has potential as a new medical metal material.
Keywords： multi-principal elements alloy; mechanical properties; corrosion resistance; EBSD
多主元合金是一类新型的合金材料，通常包含有三种或五种金属元素，也将其称之为高熵或中熵合金[1-3]。（剩余10612字）
