储能电站锂离子电池系统风液双循环优化设计

打开文本图片集

关键词：储能电站；锂离子电池系统；电池热管理；一维、三维联合仿真；温度均匀性中图分类号：TM910.2 文献标识码：A DOI：10.3969/j.issn.1674-8484.2025.04.007

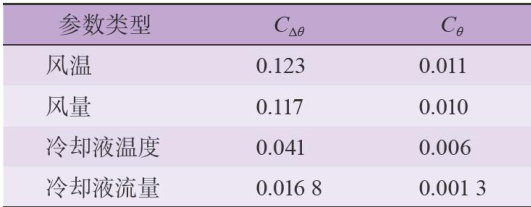

Abstract：A thermal management system with dual air-liquid circulation was proposed based on the temperature homogeneitycontroland thedynamic temperature diferenceregulation toenhance the temperature uniformityin lithium-ion batterysystems for energy storage power stations.The systemutilizedair cooling under low-to-medium temperature conditions to combined air-liquid cooling in high-temperature environments. Simulationexperiments investigated 4controlparameters including theair volume，theair temperature，the coolant temperature，and thecoolant flowrate.The heat exchange structure wasoptimized through 1D-3D cosimulations toanalyzing the significanceof temperature riseand theuniformityof performance parameters. Theresults show that under twicethe rated high-power discharge，the proposed system reduces theend-ofdischarge temperature difference by 18% compared to the conventional bottom cold plate structures.A300 sairsupplycycleachievesa 31% reduction in the temperature difference （of 1.18∘C） versusa100scycle. Parametersensitivitydecreases in theorderas theair temperature，theairvolume，thecoolant temperature，and the coolant flowrate.Therefore，thedualair-liquid circulation designenhances dynamic temperature diference control with extending the service life of energy storage battery systems.

Keywords：energy storage powerstations;lithium-ion batterysystems; batrythermal management; onedimensional/three-dimensional joint simulation; temperature uniformity

储能电池系统[1中锂离子电池[2-3]的温度是影响其性能和安全性的关键因素。（剩余10671字）
