深径比对孔型阻尼密封泄漏特性和流体激振动力学性能的影响研究

打开文本图片集

中图分类号：TK262 文献标志码：A

DOI： 10. 7652/xjtuxb202507009 文章编号：0253-987X（2025）07-0087-12

Study on the Influence of Depth-to-Diameter Ratio on the Leakage and Rotordynamic Characteristic of Hole-Pattern Damper Seals

SONG Huiling1，WEI Yangguo¹，LI Yongpeng1， ZHANG Zihan²，LI Zhigang² （1.Beijing Space Pioneer Technology Co.，Ltd.，Beijing1ooo76，China; 2.Institute of Turbomachinery，Xi'an JiaotongUniversity，Xi'an 71oo49，China）

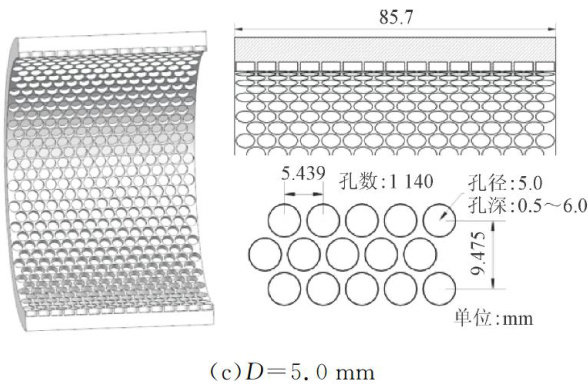

Abstract： To reveal the influence of hold depth on the sealing performance and dynamic characteristics of hole-pattern damper seals，and to explore the optimal hold depth scheme，this paper employs an unsteady multi-frequency perturbation numerical method to investigate the leakage and dynamic characteristics of hole-pattern damper seals at different depths. First，the accuracy of the numerical method is validated by comparing the leakage amounts and dynamic characteristic coefficients of hole-pattern damper seals at three different depths with experimental data. Then，the leakage amounts of hole-pattern damper seals with three different diameters （ ΔD=2.0 ，3.175，5.O mm） and continuously varying depths （depth-to-diameter ratio Ar=0.1 —1.25） are calculated and analyzed.Finally，the dynamic characteristic coeficients，chamber dynamic pressures， and vortex velocity developments of the seals under two types of inlet pre-rotation （ /μ0=0，0.5 ）and five differentdepths（ ⋅H=0.5 ，1.0，1.9，3.3， 6.6mm ， D=3.175mm areevaluated.Numerical results indicate that the depth-to-diameter ratio Ar isa key geometric parameter affecting the leakage characteristics of hole-pattern seals. From the perspective of sealing performance， Ar=0.4-0.5 represents the optimal hole depth scheme，at which the leakage amounts for different diameters reach their minimum. In terms of dynamic stability，hole-pattern damper seals with smaller depths exhibit better dynamic stability. When determining the optimal hold depth，it is necessary to consider the impact of contaminant deposition and corrosion wear，avoiding excessively small depths ⋅H≥1. 0mm ）

Keywords： hole-pattern seal; leakage characteristic; rotordynamic characteristic; the ratio of hole depth and hole diameter；multiple-frequency whirling numerical simulation

动密封是现代旋转机械的重要部件，可以有效减少动静间隙的泄漏流动，进而提高运行效率。（剩余16168字）
