某机载LRM 模块测试设备双循环液冷设计

打开文本图片集

中图分类号：TK124 文献标志码：A文章编号：1006-0316（2025）08-0074-07

doi：10.3969/j.issn.1006-0316.2025.08.012

Design for Dual-Circulation Liquid Cooling of an Airborne LRM Module Test Equipment

LIUXiaowei，LIHeng，JIANGJinchen （The30thResearch InstituteofCETC，Chengdu 610041， China）

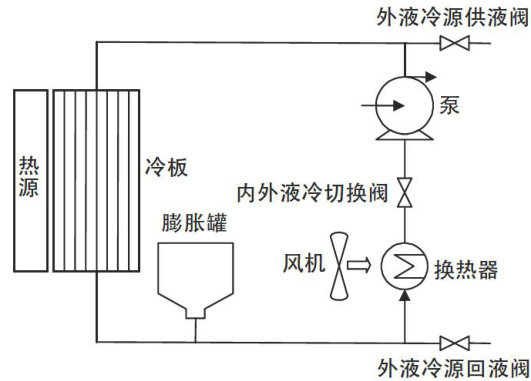

Abstract ∵ This paper presents the structural and thermal design of a liquid cooling test equipment for airborne LRM modules. It elaborates on the design details of the intermal and external liquid cooling circulation systems， which meet the requirements of miniaturizationand high heat dissipation through operational mode switching.In termsof structural design，the paper discussskeyconsiderations for modular design，structural rigidity， waterproof sealing，and surface protection of airborne liquid-cooling equipment， using the LRM module test equipment asanexample.A metal belows expansion tank is designed to fully isolate the liquid from the external environment，accommodating thermal expansion and contraction within a temperature range of -55 to 85∘C ，and ensuring stable operation under vibration and shock conditions with unfixed gravitational orientation. For thermal design，calculations andsimulations are conducted for both internal and external liquid cooling cycles.A dual-fluid （air/liquid） co-simulation method using 6SigmaET is introduced.Experimental measurements confirm the effectivenessofheat dissipation，validating its suitability for production debugging， environmental testing，and reliability testing of airborne LRM modules.The test equipment has been successfully deployed in practical applications，meetingall design requirements. Key words ∵ liquid coolingistructural design； thermal design ; 6SigmaET

随着电子设备功耗越来越高，对电子设备的散热也提出了越来越高的要求。（剩余6632字）
