基于响应面法的集装箱侧板结构参数优化设计

打开文本图片集

中图分类号：TH247 文献标识码：A

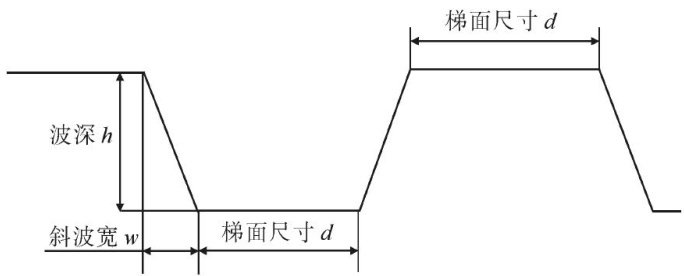

Abstract： In order to reduce the weight of the container and extend its service life while ensuring structural safety，a 4O-foot container was taken as the research object. A simulation model was established through Abaqus and the mass of the container side panel and the maximum stress of the side wall experiment were used as evaluation indicators to analyze the structural parameters of the container side panel. Based on the Box-Behnken Design in the response surface method to design the test scheme，a response surface model was established with wave height， inclined wave width and ladder surface size as design variables，and the mass of the container side plate and the maximum stress on the side wall experiment as optimization objectives. And through variance analysis and correlation analysis of the response surface model，the influence degrees of each parameter on the quality of the container side panels were determined in the following order： ladder surface size > wave depth > inclined wave width；The degree of influence on the maximum stress on the side wall experiment is in the following order： inclined wave width > wave depth > ladder surface scale. The best parameter combination was obtained within the optimization range，namely： the wave depth was 45.5mm ，the ramp width was 66.5mm ，and the ladder surface size was 79.5mm . Based on this parameter combination，the model was re-modeled and simulated. A comparative analysis was conducted with the original parameters. The weight was reduced by 4.8% ， and the maximum stress it was subjected to also met the design requirements.

Keywords： container; response surface analysis; multi-objective optimization; side walls strength test

随着国际贸易和物流业的持续发展，集装箱作为全球货物运输的核心载体，其结构的轻量化设计逐渐成为工程研究的重点[1」，如何在保证结构安全的前提下实现轻量化设计已成为集装箱结构优化的关键问题[2-4」。（剩余4900字）
