新型三栅极设计在显示面板中的应用

打开文本图片集

中图分类号：TN27 文献标识码：A doi：10.37188/CJLCD.2025-0196 CSTR：32172.14.CJLCD.2025-0196

Application of the new Triple-Gate design in display panels

ZHANG Haoxiongl*，XU Zhuqing1， ZHAO Zhenyuan 2 ， LI Yi³，WANG Xueliang³，REN Wenming1，GU Honggang 1 ， SHAO Xianjie¹，SHEN Can¹，ZHANG Dayu¹，LIAO Yanping1，WANG Zhangtao¹，FENG Bin1，SHAO Xibin1

（1.BOETechnologyGroup Co.Ltd.，BeijinglOol76，China; 2.Lenovo Beijing Co.Ltd.，Beijing 1Ooo89，China; 3.Lenovo Shanghai Information Technology Co.Ltd.，Shanghai 2Ol2O3，China）

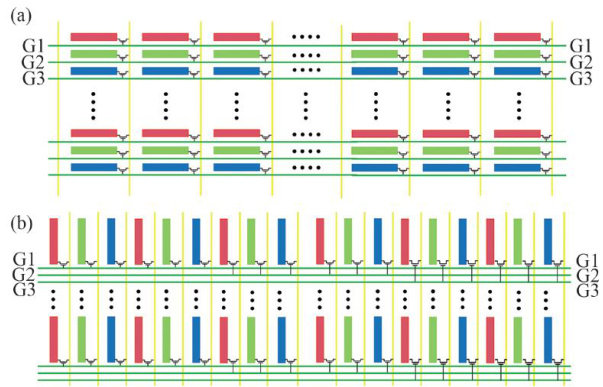

Abstract： The liquid crystal display （LCD） panel technology is increasingly growing with incompatible demands for image quality，power consumption and low cost. To meet the low-cost demand，increasing gate lines via Triple Gate pixel architecture，while it has drawbacks of high power consumption，low contrast ratio and poor image quality，is an effective way to reduce the number of integrated circuits （ICs）.Here， a generic new Triple Gate pixel architecture is verified with 26% power consumption reduction during solid-color display operation， 55% contrast ratio increase under 45∘ view angle and high image quality. It offers an innovative solution for improving the performance of low-cost LCD panels.

Key words：new Triple Gate pixel architecture；display panel;array design

1引言

液晶显示面板作为人机交互的核心载体，已广泛应用于智能手机、平板电脑、电视、虚拟现实设备及车载系统等现代电子设备上。（剩余9912字）
