基于智能间隔棒的输电线风偏舞动监测技术

打开文本图片集

中图分类号：TP29 文献标志码：A 文章编号：1000-582X（2026）04-081-08

doi：10.11835/j.issn.1000-582X.2026.04.007

Monitoring technology of wind deviation of transmission line based on power line intelligent spacing bar

LI Han'，WANG Peng'，HE Tengfei'，DUAN Sike，ZHONG Yuanchang （1. School of Electrical Engineering， Chongqing University， Chongqing 40o044，P.R. China; 2.Sichuan Energy Investment Development Co.，Ltd.， Chengdu 61113o，P.R.China）

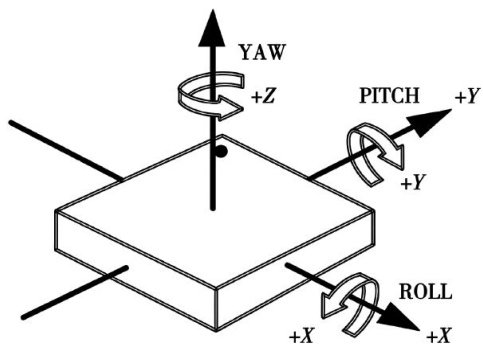

Abstract： Aiming at the problems of complex installation，high power supply and maintenance costs of existing transmission line wind deflection/galoping monitoring terminals，this paper proposes a wireless intellgent monitoring scheme based on spacer dampers：MEMS（micro-electro-mechanical-system）thre-axis inertial sensors are embedded in the spacer dampers to obtain the three-directional vibration and torsional responses of the conductors;combined with the compressed sensing framework and the orthogonal matching pursuit （orthogonal matching pursuit）reconstruction algorithm，the sparsity of data is utilized and a Gaussian random sensing matrix is adopted to realize the reconstruction of the ful-line galloping curves.The simulation and experimental results show that： under the given span condition，the sparsity can be adaptively set with the sampling length; when the observation ratio is 10% to 20% ，high reconstruction accuracy can be achieved，which meets the online monitoring needs of long-span lines.This wireless intelligent spacer damper monitoring scheme provides an engineering feasible path for the real-time monitoringand reconstruction of transmisson line wind deflection/ galloping.

Keywords： MEMS sensor; orthogonal matching pursuit （OMP） algorithm; conductor galloping

输电线路分布范围广，为千家万户及工厂、学校等单位提供稳定可靠的电力输送服务，确保社会运转的顺畅与高效[1-2]。（剩余9908字）
